12 Volt Timer Relay On-Off Automotive Digital Delay Relay Electric Delay Timer Switch Cycle Time Delay Module YS-RT1C YS-RT1T(Power on delay open)

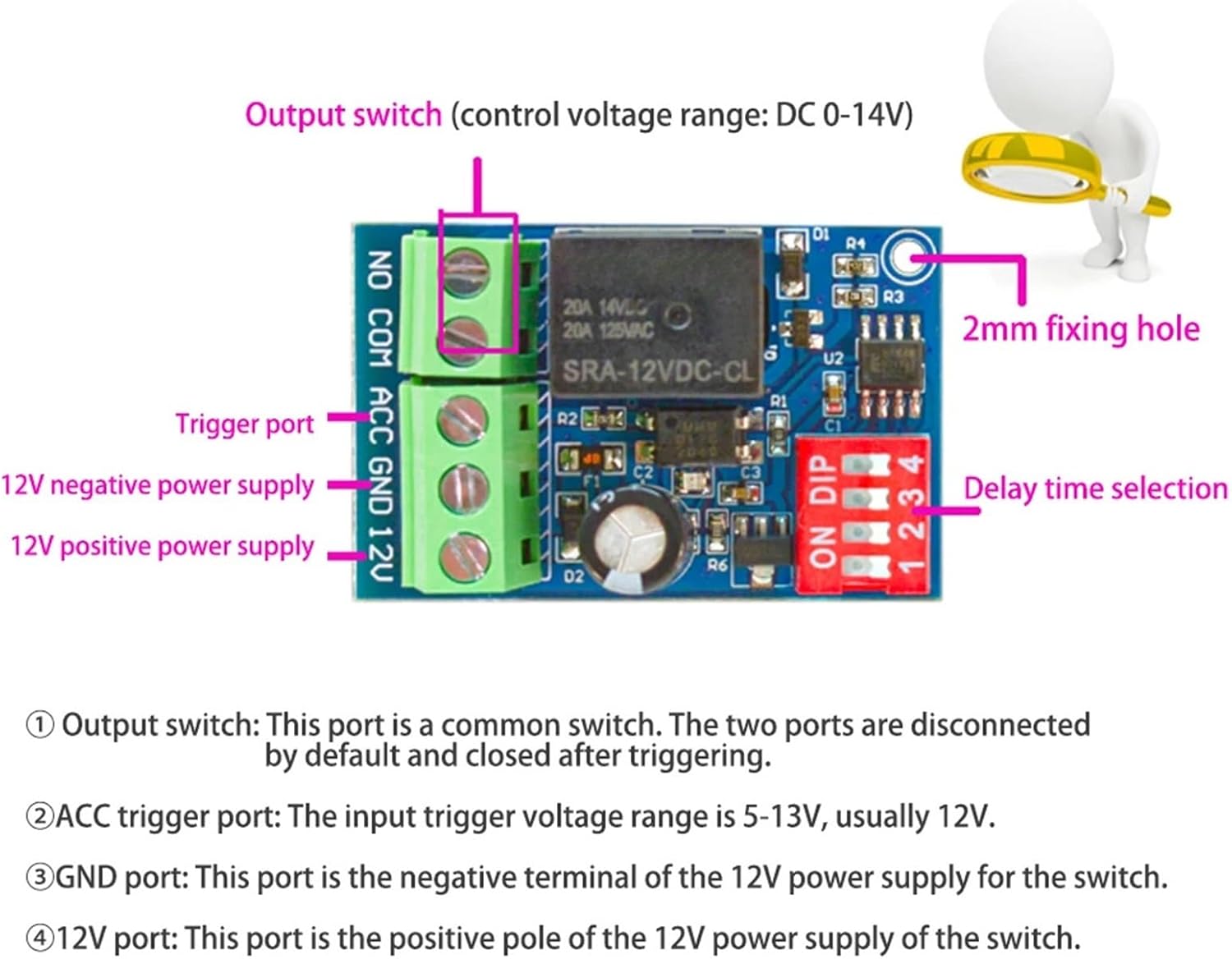

relaysParameters:Name: Automotive power on/off delay switchModel: YS-RT1QShell with hole specification: 63 * 35 * 22mmBare board specification: 45 * 29 * 18mmPower supply voltage: DC 12VStandby current: 10maWorking current: 68ma (current after the trigger switch is turned on)Output control voltage: DC 0-14V, AC 0-125V<;11AWorking temperature and humidity: -20 to 70 , RH 80%Switch workflow: After powering on the switch, when ACC detects power and delays for 8 seconds, the switch remains closed. In this case, ACC detects no power and delays for X, and when the time is up, the switch opens. (Among them, 8 seconds is a fixed time that cannot be modified by users and can be customized)Model: YS-RT1CSpecification: 50x35x22mmPower supply voltage: DC 12VWorking current: 68ma (current after the trigger switch is turned on)Standby current: 10maOutput control voltage: DC 0-14V, AC 0-125V<;11AWorking temperature: -20 to 70 Working principle: After connecting the power to this device, the trigger port provides voltage triggering, and the switch automatically closes after a delay of a certain period of time when openedModel: YS-RT1KShell with hole specification: 63 * 35 * 22mmBare board specification: 45 * 29 * 18mmPower supply voltage: DC 12V<;3MAWorking current: 68ma (current after the trigger switch is turned on)Output control voltage: DC 0-14V, AC 0-125V<;11AWorking temperature: -20 to 70 Working principle: After connecting the power to this device, the switch will open and delay for a period of time before closing.Common function: Check whether the external power supply has power, as a trigger signal to control lower level equipment.Model: YS-RT1TSpecification: 50x35x22mmPower supply voltage: DC 12VWorking current: 68ma (current after the trigger switch is turned on)Output control

• relays
• Theory : Voltage relay
• Contact Load : Low Power
• Use : General Purpose
• Shell with hole specification: 63 * 35 * 22mm
• Bare board specification: 45 * 29 * 18mm
